Description:
?

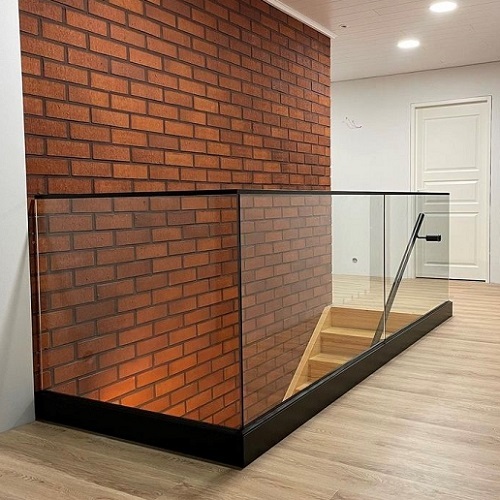

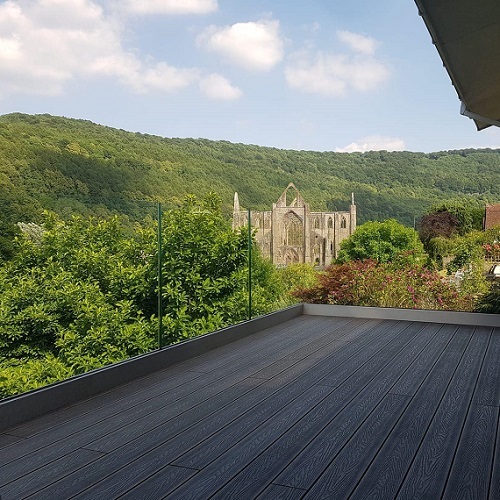

Aluminum U Channel Base Shoe Frameless Glass Railing
?
With clean, modern lines and strong design, the Glass Base Shoe Rail System elevates your style and provides a beautiful, durable railing option. Base Rail channels come in 3 meters & 4 meters lengths that can be easily combined to work for any project. It is designed to support 12mm to 21.52mm thick glass (sold separately). For a chic, fresh vision—choose the Glass Base Shoe Rail System.
?
Features:
Made from high grade Aluminum material
Available finishes in anodized or powder coated
Easy-to-do clamp installation
Compatible with 12mm to 21.52mm monolithic or laminated glass
Comes in 3m & 4m lengths that are easily joined together
Glass and installation tools are sold separately
?

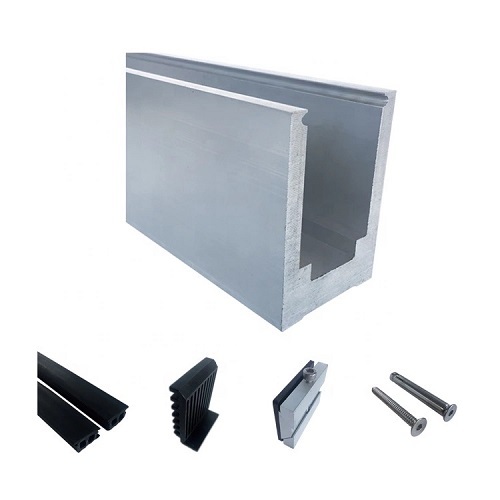

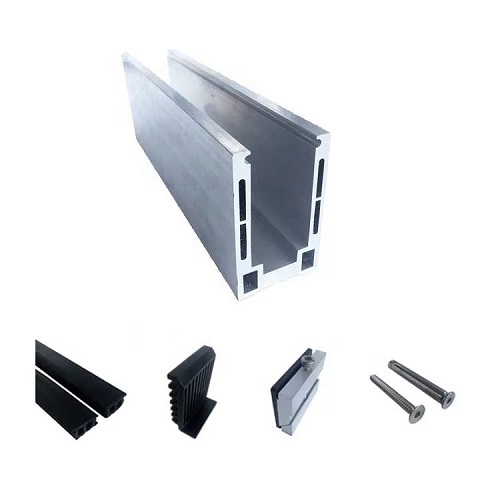

Package Contents (for 1 meter base U channel):
1 ×?base rail body
3 ×?aluminum & plastic clamping fittings
3 ×?expansion screws
?
Dimension:
102mm H ×?62mm W
?
Note:
Base rail covers, installation tools and bulb seal are sold separately due to the different configurations each project requires.
